Cnc Articulated Packaging Chinese Robot Arm Kit 930mm Reach Payload 7kg

Name: Cnc Articulated Packaging Chinese Robot Arm Kit 930mm Reach Payload 7kg
Brand: KAWASAKI
Price: 1 USD

Brand Name : KAWASAKI

Model Number : RS007L

Certification : CE

Place of Origin : China

MOQ : 1 set

Payment Terms : T/T, L/C, Western Union

Supply Ability : 50 sets /Month

Delivery Time : 7 working days after deposit

Packaging Details : One Robotic arm packaging and robot arm kit payload 7kg reach 930mm RS007L cnc robotic arm for Kawasaki robot packing with fumigation wooden frame, WG: 1120 KG Controller and other parts packing with brown box, WG: 120 KG

Product name : 6 axis robot arm milling machine and low cost robotic arm payload 7kg RS007N robotic arm industrial for Kawasaki robot

Type : Articulated robot

Model : RS007L

Axis : 6

Payload : 7kg

Reach : 930mm

Mass : 36kg

Mounting : Floor, Ceiling

Positional Repeatability : ±0.03mm

Protection : Wrist : IP67 equivalent / Base axis : IP65 equivalent

Contact Now

Robotic arm packaging and robot arm kit payload 7kg

reach 930mm RS007L cnc robotic arm for Kawasaki robot

Specification

RS007L SPECIFICATIONS
Type	Articulated Robot
Degrees of Freedom (axes)	6
Payload (kg)	7
Max. Reach (mm)	930
Positional Repeatability (mm) ✽1	±0.03

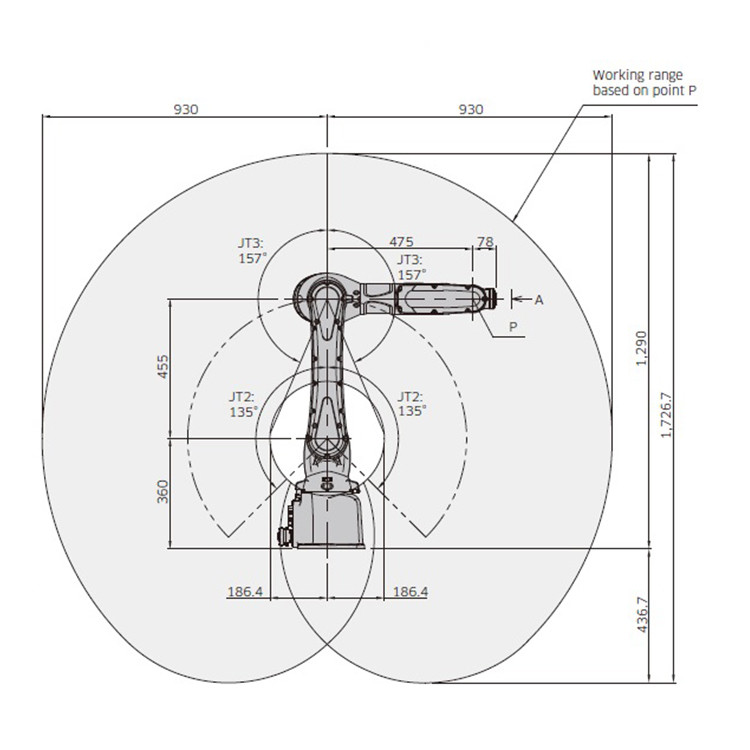

Motion Range (°)	Arm Rotation (JT1)	±180
	Arm Out-in (JT2)	±135
	Arm Up-down (JT3)	±157
	Wrist Swivel (JT4)	±200
	Wrist Bend (JT5)	±125
	Wrist Twist (JT6)	±360
Max. Speed (°/s)	Arm Rotation (JT1)	370
	Arm Out-in (JT2)	310
	Arm Up-down (JT3)	410
	Wrist Swivel (JT4)	550
	Wrist Bend (JT5)	550
	Wrist Twist (JT6)	1,000
Allowable Moment (N•m)	Wrist Swivel (JT4)	17
	Wrist Bend (JT5)	17
	Wrist Twist (JT6)	10
Allowable Moment of Inertia (kg•m2)	Wrist Swivel (JT4)	0.5
	Wrist Bend (JT5)	0.5
	Wrist Twist (JT6)	0.2
Mass (kg)	36
Mounting	Floor, Ceiling
Installation Environment	Ambient Temperature (°C)	0 - 45
Installation Environment	Relative Humidity (%)	35 - 85 (No dew, nor frost allowed)
Controller / Power Requirements (kVA)	F60 / 2.0
Protection	Wrist : IP67 equivalent　/ Base axis : IP65 equivalent

Product Description

RS007L Robot

HIGH-SPEED, HIGH-PERFORMANCE ROBOT

The R series robots are setting the benchmark for all small to medium duty industrial robots. The compact design, along with industry leading speed, reach and work range make the R series robots ideal for a wide range of applications throughout a multitude of diverse industries.

Cnc Articulated Packaging Chinese Robot Arm Kit 930mm Reach Payload 7kg

Product Information

Our Service

1.Swift delivery

For common parts, we can deliver the goods within 3 days

2.Original products

All the products we sell are from origin manufacturer. We will submit all the manufacturer documentation while we finish delivery.

3.Quality Assurance

4.Technical Support

Including inspection,repair and maintenance, we can give all kinds of technical support.

5.Quickly responce

Our staffs will keep 24h online and answer your question very quickly.
