4 Aixs Fanuc Robot Arm Assembly 6kg Payload 650mm Reach Mini Size SR - 6iA

Supply Ability : 100 Set/Sets per Month

Packaging Details : High quality 4 aixs robotic arm assembly robot 6kg payload 650mm reach Mini Industrial Robot SR-6iA Packing type:100% Original wooden box packaging

MOQ : 1 Set/Sets

Price : Negotiation

Brand : FANUC

Controlled axes : 4

Max. payload at wrist : 30kg

Repeatability : ±0.02mm

Installation : Floor, Wall

Mass : 19kg

Matching controller : R-30iB/R-30iB Plus 12kVA

Type : Handing robotic arm, Automatic Control

Reach : 650mm

Other : Intelligent Equipment

Port : Shanghai Port

Contact Now

Product Description

High quality 4 aixs robotic arm assembly robot 6kg payload 650mm reach Mini Industrial Robot SR-6iA

FEATURE

The FANUC SCARA SR-6iA robot is the perfect four-axis solution for your assembly, picking/packaging, kitting, or dispensing needs with its generous vertical stroke. The SCARA SR-6iA also has a 650 mm reach and a slim design that helps to minimize interference with peripheral devices. It is also a high-speed robot that can handle precise jobs.

The SCARA SR-6iA has a high inertia capacity that helps to bring greater flexibility for the handling of large work pieces when necessary. Furthermore, the SR-6iA is lightweight which helps make the integration process a breeze.

FANUC is known for their intelligent software options that are also available for the FANUC SCARA SR-6iA such as iRVision, force sensing, conveyor tracking, fieldbus connectivity, and integrated safety.

It is paired with the FANUC R-30iB Compact Plus controller that offers easy installation and minimal floor space.

Specifications

Product name	High quality 4 aixs robotic arm assembly robot 6kg payload 650mm reach Mini Industrial Robot SR-6iA
Controlled axes	4
Max. payload at wrist	6kg

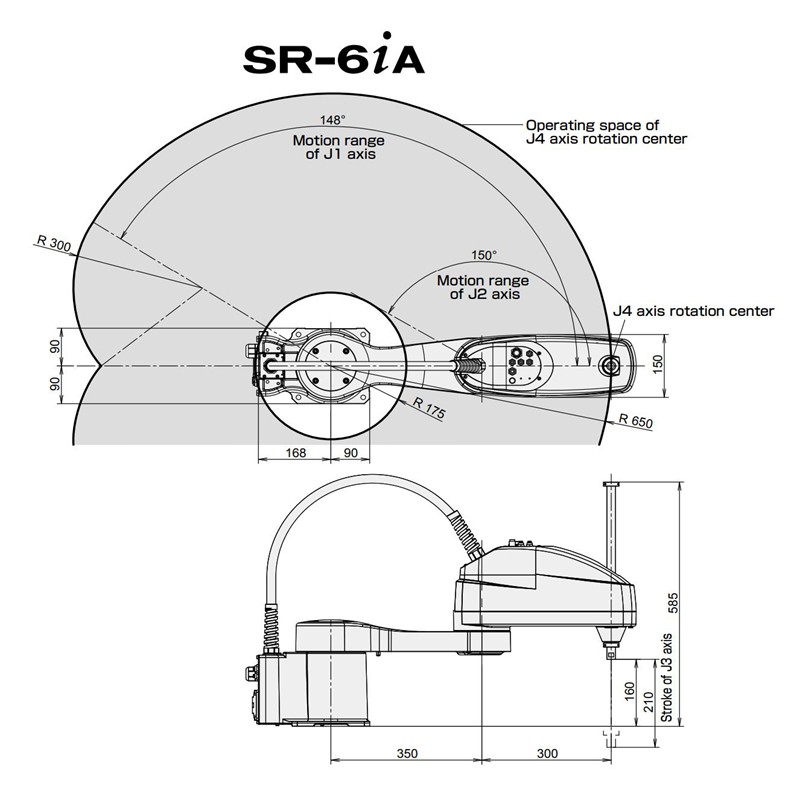

Motion range (X, Y)	400mm, 800mm
Repeatability	±0.01mm
Mass	19kg
Reach	650mm
Installation	Floor, Wall
Application	Handling, Assembling
Repeatability	J1 + J2 axis: ±0.01mm
	J3 stroke: ±0.01mm
	J4 axis: ±0.04°
Robot Motion Speed	J1: 440
	J2: 700
	J3: 200mm/sec
	J4: 2500
Matching controller / Input power capacity	R-30iB/R-30iB Plus (A-cabinet), R-30iB Mate/R-30iB Mate Plus (standard, open air) / 2kVA
